    Grundfos Water Supply Unit Ultimate Solution for Municipal Residential Water Pressurization Max Pressure 16 bar

    Ask Lasest Price
    Brand Name : Grundfos
    Model Number : Hydro Solo-E CRE 15-2
    Price : negotiable
    Payment Terms : L/C,D/A,D/P,T/T,MoneyGram,Western Union
    Supply Ability : 100
    Delivery Time : 5-8 weeks
    • Product Details
    • Company Profile

    Grundfos Water Supply Unit Ultimate Solution for Municipal Residential Water Pressurization Max Pressure 16 bar

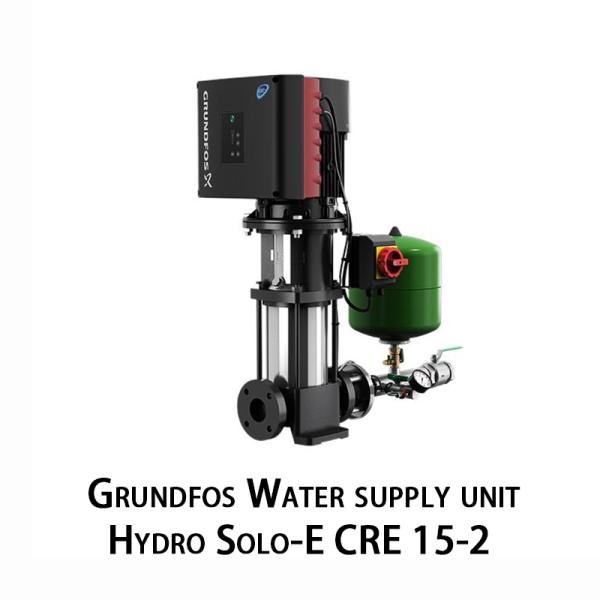

    Hydro Solo-E CRE 15-2
    The Grundfos Hydro Solo-E booster set equipped with one pump is a combined unit, consisting of an electronic pump (CRE) equipped with an isolation valve, a check valve, a discharge pipeline, a pressure transmitter, a pressure gauge and a diaphragm tank. The booster set is ready for operation upon delivery.


    The features of this pump are as follows:


    The impeller and the intermediate chamber are made of stainless steel DIN W.-Nr. 1.4301.
    The pump head and the base are made of cast iron.
    The assembled length of the shaft seal complies with EN 12756.
    The power transmission is carried out through a cast iron split coupling.


    Water supply unit, Booster unit
    Hydro Solo-E CRE 15-2
    Number: 99172049

    Suitable for

    • Commercial water pressure boosting
    • Municipal water distribution
    • Water supply for residential areas and buildings

    Hydro Solo-E is a fully optimized booster system for systems that require constant pressure. It features constant pressure control, flow estimation, and plug - and - play installation.


    Liquid:
    Liquid conveyed: Water
    Liquid temperature range: 0 - 60 °C
    Liquid temperature during operation: 20 °C
    Density: 998.2 kg/m³
    Technology:
    Rated flow rate: 20.5 cubic meters per hour
    Rated head: 31.6 meters
    Main shaft seal: HQQE
    Shaft seal code: HQQE
    Installation:
    Maximum ambient temperature: 50 °C
    Maximum operating pressure: 16 bar
    Standard for inlet connection: DIN
    Type of inlet connection: DIN
    Type of outlet connection: Rp
    Inlet size: DN 50
    Suction port size: 2 inch
    Outlet size: DN 50
    2 inch
    Flange size for motor: FT130
    Electrical data:
    Motor model: 100LA
    Rated power - P2: 3 kW
    Power supply frequency: 50 / 60 Hz
    Rated voltage: 3 x 380 - 500 V
    Rated current: 5.80 - 4.80 A
    Cos phi - Power factor: 0.91 - 0.86
    Rated speed: 360 - 4000 revolutions per minute
    Enclosure rating (IEC 34 - 5): IP55
    Insulation class (IEC 85): F
    Motor number: 92984045
    Tank:
    Tank volume: 25 liters
    Others:
    Net weight: 71.9 kg
    Gross weight: 91.9 kg
